Our custom-shaped gold-coated quartz plates, like the featured circular pieces with an oblong internal cut-out, are precision-engineered from high-purity fused silica. The advanced gold metallization process provides exceptional high reflectivity (especially in IR), electrical conductivity, and chemical inertness. These bespoke components are ideal for demanding applications requiring specific optical, electrical, or protective properties in industries such as optics, sensors, microelectronics, and scientific instrumentation.
| Property Content | Property Values |
|---|---|
| SiO2 | 99.99% |
| Density | 2.2×10³ kg/cm³ |
| Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Tensile Strength | 4.8×10⁷ Pa (N/mm2) (7000 psi) |
| Compression Strength | >1.1×10⁹ Pa (160,000 psi) |
| Coefficient of Thermal Expansion | 5.5×10⁻⁷ cm/cm·°C (20°C-320°C) |
| Thermal Conductivity | 1.4 W/m·°C |
| Specific Heat | 670 J/kg·°C |
| Softening Point | 1730°C (3146°F) |
| Annealing Point | 1210°C (2210°F) |
| Strain Point | 1120°C (2048°F) |
| Work Temperature | 1200°C (2192°F) |
| Electrical Resistivity | 7×10⁷ ohm cm (350°C) |
| Size | Customized |
| Logo | Customized Logo Accept |
High Transparency
Quartz glass itself possesses extremely high transparency, and the gold coating process does not affect its optical transmission, ensuring clarity in optical applications.
High-Temperature Resistance
The quartz material can withstand continuous use temperatures of up to 1100°C, making it suitable for high-temperature environments.
Gold Coating Enhancement
The gold layer coating enhances the reflectivity of the quartz glass, particularly in the infrared and visible light ranges, while also providing good electrical conductivity.
Shape Versatility
Quartz custom gold-coated plates can be fabricated into various shapes to meet specific application requirements, such as circular, square, or other complex shapes.
Application Scenario
Semiconductor Manufacturing
In semiconductor processes, quartz custom gold-coated plates are used as various components, such as furnace tubes and glass boats, which require direct or indirect contact with silicon wafers in high-temperature environments. The high-temperature resistance and thermal stability of quartz materials are essential in these applications.
Optical Lens Manufacturing
In the optical field, quartz custom gold-coated plates are used to reduce reflection and enhance light transmission by coating a layer of quartz film onto the glass surface, thereby improving the performance of optical equipment. This is widely utilized in the manufacturing of optical instruments such as camera lenses, telescopes, and microscopes.
Electronics Manufacturing
In the manufacturing of electronic products, such as displays, quartz custom gold-coated plates enhance clarity and contrast, improving the visual experience through coatings.
Solar Photovoltaic Field
In the solar photovoltaic sector, quartz custom gold-coated plates are used to manufacture solar panels, improving photoelectric conversion efficiency, thus enhancing the overall performance of solar panels.
The gold coating on quartz custom gold-coated plates primarily serves two purposes: first, to enhance their optical performance within specific wavelength ranges, such as reflectivity and transmission; and second, to provide good electrical conductivity, which is crucial in electronic and optoelectronic applications.
In semiconductor manufacturing, quartz custom gold-coated plates can be used to fabricate components such as furnace tubes and glass boats, which require direct or indirect contact with silicon wafers in high-temperature environments. The high-temperature resistance and thermal stability of quartz are critical for these applications.
The custom shape of quartz custom gold-coated plates allows them to be adapted to various industrial and scientific applications. For example, specific shapes can be used in the design of particular optical instruments, semiconductor manufacturing equipment, or solar panels to ensure optimal performance and compatibility.
Large-size quartz glass plate
Optical Quartz Plate
Quartz Disc
Quartz Wafer
Quartz Wafer
Quartz Square Window
Custom-Shaped Gold-Coated Plate
Rounded-Edge Gold-Coated Long Strip

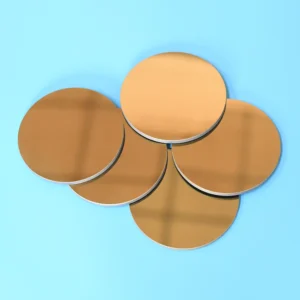

Circular Gold-Coated Disc
