Custom Large Diameter Quartz Glass Tubes & Fused Silica Tubing – High Purity for Industrial Applications

Custom Large Diameter Quartz Glass Tubes & Fused Silica Tubing – High Purity for Industrial Applications

    分类：

    Large diameter quartz tubes are characterized by diameters ranging from 100mm to 600mm and lengths exceeding one meter. These quartz glass tubes exhibit high purity, high temperature resistance, corrosion resistance, good mechanical strength, low thermal expansion coefficient, excellent light transmission, and superior electrical insulation properties.

    ODIDWTL(mm)
    1mm0.5mm0.25mm1~6000mm(custom)
    1.5mm0.8mm0.35mm1~6000mm(custom)
    2mm1mm0.5mm1~6000mm(custom)
    2.5mm1.5mm0.5mm1~6000mm(custom)
    3mm2mm0.5mm1~6000mm(custom)
    3mm1mm1mm1~6000mm(custom)
    4mm3mm0.5mm1~6000mm(custom)
    4mm2mm1mm1~6000mm(custom)
    4mm1mm1.5mm1~6000mm(custom)
    5mm4mm0.5mm1~6000mm(custom)
    5mm3mm1mm1~6000mm(custom)
    5mm2mm1.5mm1~6000mm(custom)
    5.5mm3.5mm1mm1~6000mm(custom)
    6mm5mm0.5mm1~6000mm(custom)
    6mm4mm1mm1~6000mm(custom)
    6mm3mm1.5mm1~6000mm(custom)
    6mm2mm2mm1~6000mm(custom)
    6.5mm4.5mm1mm1~6000mm(custom)
    7mm5mm1mm1~6000mm(custom)
    7mm4mm1.5mm1~6000mm(custom)
    7.5mm5.5mm1mm1~6000mm(custom)
    8mm6mm1mm1~6000mm(custom)
    8mm5mm1.5mm1~6000mm(custom)
    8.5mm6.5mm1mm1~6000mm(custom)
    9mm7mm1mm1~6000mm(custom)
    9mm6mm1.5mm1~6000mm(custom)
    9mm5mm2mm1~6000mm(custom)
    10mm8mm1mm1~6000mm(custom)
    10mm7mm1.5mm1~6000mm(custom)
    10mm6mm2mm1~6000mm(custom)
    10mm4mm3mm1~6000mm(custom)
    10mm2mm4mm1~6000mm(custom)
    11mm9mm1mm1~6000mm(custom)
    11mm8mm1.5mm1~6000mm(custom)
    11mm7mm2mm1~6000mm(custom)
    11mm5mm3mm1~6000mm(custom)
    12mm10mm1mm1~6000mm(custom)
    12mm8mm2mm1~6000mm(custom)
    12mm4mm4mm1~6000mm(custom)
    13mm11mm1mm1~6000mm(custom)
    13mm10mm1.5mm1~6000mm(custom)
    13mm9mm2mm1~6000mm(custom)
    14mm12mm1mm1~6000mm(custom)
    14mm10mm2mm1~6000mm(custom)
    15mm13mm1mm1~6000mm(custom)
    15mm11mm2mm1~6000mm(custom)
    15mm9mm3mm1~6000mm(custom)
    16mm14mm1mm1~6000mm(custom)
    16mm13mm1.5mm1~6000mm(custom)
    16mm12mm2mm1~6000mm(custom)
    16mm10mm3mm1~6000mm(custom)
    17mm15mm1mm1~6000mm(custom)
    17mm14mm1.5mm1~6000mm(custom)
    18mm16mm1mm1~6000mm(custom)
    18mm15mm1.5mm1~6000mm(custom)
    18mm14mm2mm1~6000mm(custom)
    18mm12mm3mm1~6000mm(custom)
    18mm11mm3.5mm1~6000mm(custom)
    19mm17mm1mm1~6000mm(custom)
    19mm16mm1.5mm1~6000mm(custom)
    19mm13mm3mm1~6000mm(custom)
    20mm18mm1mm1~6000mm(custom)
    20mm17mm1.5mm1~6000mm(custom)
    20mm16mm2mm1~6000mm(custom)
    20mm14mm3mm1~6000mm(custom)
    25mm19mm3mm1~6000mm(custom)
    25mm21mm2mm1~6000mm(custom)
    25mm21mm2mm1~6000mm(custom)
    25mm21mm2mm1~6000mm(custom)
    25mm21mm2mm1~6000mm(custom)
    25mm20mm2.5mm1~6000mm(custom)
    25mm20mm2.5mm1~6000mm(custom)
    25mm20mm2.5mm1~6000mm(custom)
    26mm21mm2.5mm1~6000mm(custom)
    28mm24mm2mm1~6000mm(custom)
    30mm26mm2mm1~6000mm(custom)
    30mm24mm3mm1~6000mm(custom)
    35mm30mm2.5mm1~6000mm(custom)
    40mm34mm3mm1~6000mm(custom)
    40mm34mm3mm1~6000mm(custom)
    40mm34mm3mm1~6000mm(custom)
    40mm34mm3mm1~6000mm(custom)
    40mm32mm4mm1~6000mm(custom)
    40mm32mm4mm1~6000mm(custom)
    40mm32mm4mm1~6000mm(custom)
    40mm32mm4mm1~6000mm(custom)
    40mm32mm4mm1~6000mm(custom)
    45mm39mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm44mm3mm1~6000mm(custom)
    50mm42mm4mm1~6000mm(custom)
    50mm42mm4mm1~6000mm(custom)
    50mm42mm4mm1~6000mm(custom)
    50mm42mm4mm1~6000mm(custom)
    50mm42mm4mm1~6000mm(custom)
    50mm42mm4mm1~6000mm(custom)
    50mm40mm5mm1~6000mm(custom)
    50mm40mm5mm1~6000mm(custom)
    60mm54mm3mm1~6000mm(custom)
    60mm54mm3mm1~6000mm(custom)
    60mm54mm3mm1~6000mm(custom)
    60mm54mm3mm1~6000mm(custom)
    60mm52mm4mm1~6000mm(custom)
    60mm52mm4mm1~6000mm(custom)
    60mm50mm5mm1~6000mm(custom)
    60mm50mm5mm1~6000mm(custom)
    80mm74mm3mm1~6000mm(custom)
    80mm74mm3mm1~6000mm(custom)
    80mm74mm3mm1~6000mm(custom)
    80mm72mm4mm1~6000mm(custom)
    80mm72mm4mm1~6000mm(custom)
    80mm70mm5mm1~6000mm(custom)
    80mm70mm5mm1~6000mm(custom)
    85mm79mm3mm1~6000mm(custom)
    90mm80mm5mm1~6000mm(custom)
    100mm94mm3mm1~6000mm(custom)
    100mm94mm3mm1~6000mm(custom)
    100mm94mm3mm1~6000mm(custom)
    100mm92mm4mm1~6000mm(custom)
    100mm92mm4mm1~6000mm(custom)
    100mm90mm5mm1~6000mm(custom)
    100mm90mm5mm1~6000mm(custom)
    120mm112mm4mm1~6000mm(custom)
    120mm110mm5mm1~6000mm(custom)
    120mm112mm4mm1~6000mm(custom)
    120mm110mm5mm1~6000mm(custom)
    130mm120mm5mm1~6000mm(custom)
    130mm124mm3mm1~6000mm(custom)
    130mm124mm3mm1~6000mm(custom)
    130mm120mm5mm1~6000mm(custom)
    130mm120mm5mm1~6000mm(custom)
    140mm130mm5mm1~6000mm(custom)
    140mm130mm5mm1~6000mm(custom)
    150mm140mm5mm1~6000mm(custom)
    150mm140mm5mm1~6000mm(custom)
    150mm140mm5mm1~6000mm(custom)
    180mm170mm5mm1~6000mm(custom)
    180mm170mm5mm1~6000mm(custom)
    180mm170mm5mm1~6000mm(custom)
    200mm190mm5mm1~6000mm(custom)
    200mm190mm5mm1~6000mm(custom)
    200mm190mm5mm1~6000mm(custom)
    1 1
    • ayment method: By wire transfer or advance payment, depending on the quantity of the order.
    • Delivery time: According to the order quantity.
    • Transportation method: Sea freight or air freight, depending on the customer.

    Remarks：

    To confirm the order, the following parameters need to be provided: ① OD ② ID ③ Thickness ④ Lengt ⑤ Quantity

    Property ContentProperty Values
    SiO299.99%
    Density2.2×10³ kg/cm³
    Hardness5.5 - 6.5 Mohs' Scale 570 KHN 100
    Tensile Strength4.8×10⁷ Pa (N/mm2) (7000 psi)
    Compression Strength>1.1×10⁹ Pa (160,000 psi)
    Coefficient of Thermal Expansion5.5×10⁻⁷ cm/cm·°C (20°C-320°C)
    Thermal Conductivity1.4 W/m·°C
    Specific Heat670 J/kg·°C
    Softening Point1730°C (3146°F)
    Annealing Point1210°C (2210°F)
    Strain Point1120°C (2048°F)
    Work Temperature1200°C (2192°F)
    Electrical Resistivity7×10⁷ ohm cm (350°C)
    SizeCustomized
    LogoCustomized Logo Accept

    High-Temperature Resistance

    Quartz tubes can withstand temperatures up to 1250°C without deformation or cracking.

    Corrosion
    Resistance

    These tubes demonstrate exceptional resistance to acids, alkalis, and other corrosive substances.

    High Light
    Transmittance

    Quartz glass provides excellent light transmission across ultraviolet to infrared spectra.

    Low Thermal Expansion Coefficient

    The minimal thermal expansion coefficient ensures dimensional stability under significant temperature changes.

    Application Scenario

    未标题 1 6

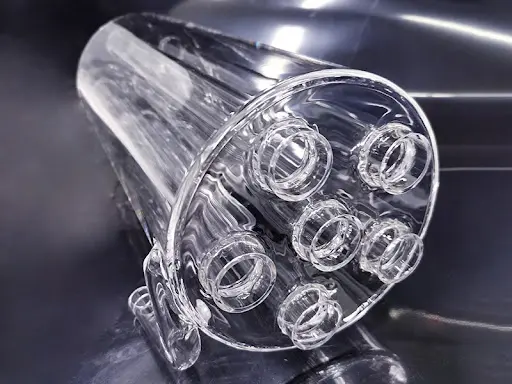

    Semiconductor Manufacturing

    In chip production, large diameter quartz tubes serve as carriers during carbonization processes, transporting materials like alumina.

    未标题 1 7

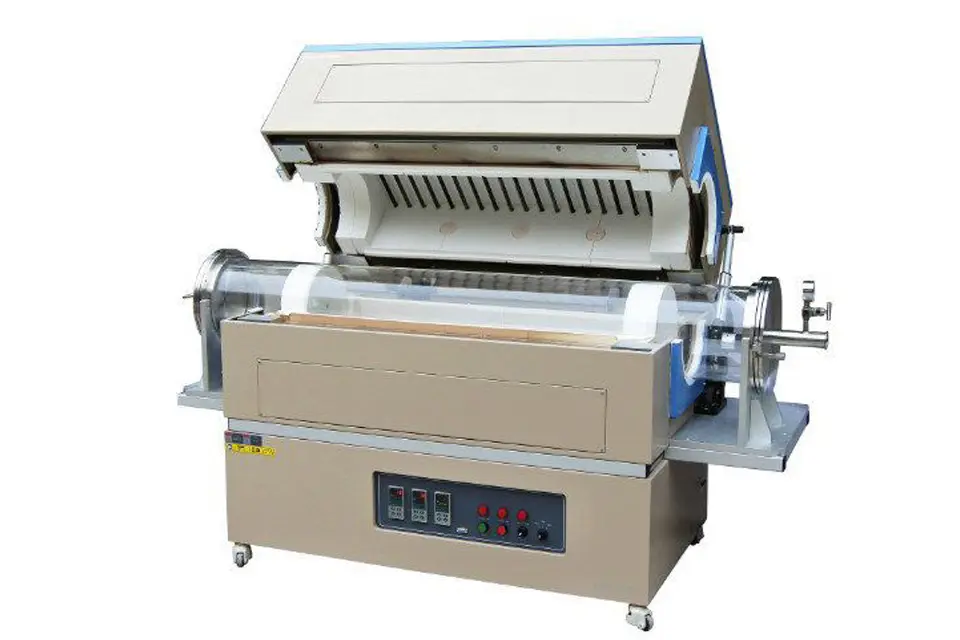

    Thermal Processing

    In high-temperature processes like LED manufacturing, these quartz glass tubes withstand high-temperature and high-pressure environments, ensuring smooth operation.

    未标题 1 8

    Pharmaceutical Industry

    Due to their excellent corrosion resistance, large diameter quartz tubes are utilized in manufacturing high-purity fluids and constructing components like bioreactors for filtration or immobilization in biotechnology applications.

    未标题 1 9

    Optical Instruments

    As a raw material for optical components such as apertures, windows, reflectors, and lenses, large diameter quartz tubes play a crucial role in producing high-precision optical instruments like telescopes, microscopes, and spectrometers.

    未标题 1 10

    Electronic Devices

    They are frequently employed as packaging for large electronic components, including resistors, emitters, and certain sensors.

    未标题 1 11

    Other Industries

    Large diameter quartz tubes find widespread applications in high-tech industries like photovoltaics and electric light sources that require high-temperature resistance, corrosion resistance, light transmission, and filtering capabilities in their manufacturing processes.

    Handle with care

    Quartz glass products are made from valuable materials and must be handled gently to avoid collisions and falls.

    Regular maintenance

    The maintenance of quartz tubes must be performed regularly to ensure their long-term stable performance. Regularly check the connections, fixings, and mechanical vibrations of the quartz tubes to prevent abnormalities. The exterior of the quartz tubes is prone to contamination from dust and moisture, so they should be cleaned regularly.

    Storage environmen

    When storing quartz tubes, care should be taken to avoid exposure to mechanical vibrations, shocks, and excessively high temperatures. They should be kept in a dry, cool, and well-ventilated place, avoiding direct sunlight and high-temperature environments.

    When selecting, consider the purity, transparency, heat resistance, and chemical resistance of the quartz tubes. High-quality quartz tubes should be free of air bubbles, scratches, and cutting chipping, and should be made from environmentally friendly materials without formaldehyde odor.

    Use caution with its softening point (1270°C), and avoid using it for more than three hours at 1200°C. Be especially careful when using in environments with hydrogen gas unless proper safety measures are in place. For maintenance, clean with deionized water, and avoid touching with hands after cleaning to maintain high purity.

    Although quartz tubes are cost-effective and transparent, they have certain limitations compared to other materials in terms of the number of heat-cold cycles they can withstand, making them less suitable for applications requiring frequent temperature fluctuations.

    1.石英激光打孔

    Laser Drilling of Quartz

    Quartz Tube with External Threads

    Threaded Quartz Tube

    3.管面螺纹

    External Thread on Quartz Tube

    Quartz Tube with Internal Threads

    Internal Threaded Quartz Tube

    Slotting of Quartz Tube Walls

    Quartz Tube Slotted

    Creating Windows on Quartz Tube Surface

    Window on Quartz Tube

    Angled Cutting of Quartz Tube

    Angled Cut Quartz Tube

    Quartz Tiles/Quartz Plates

    Quartz Tile

    Cutting Windows in Quartz Tube

    Quartz Tube with Window

    Frequently asked questions

    We specialize in the end-to-end manufacturing of high-purity quartz glass components. Our core product lines include:

    • Quartz Tubing & Rods: A wide range of diameters and specifications.

    • Quartz Plates & Discs: Precision-cut and polished for optical and industrial use.

    • Quartz Labware: A full suite of standard and custom glassware, including beakers, flasks, and boats.

    • Semiconductor-Grade Quartz: High-purity components like process tubes and carriers for semiconductor fabrication.

    • Custom Fabricated Components: We can produce complex parts tailored to your unique designs and specifications.

    Yes. Custom fabrication is at the core of our business. With over a decade of specialized experience, we partner with companies to provide expert OEM/ODM services. Our capabilities include welding, grinding, drilling, polishing, bending, and other precision processing techniques to create components that meet your exact requirements.

    Quality is paramount in our manufacturing process. We are an ISO 9001:2015 certified manufacturer, ensuring that our processes meet international quality management standards.Our products also undergo rigorous SGS testing for purity and performance. We use high-purity raw materials (up to 99.998% SiO2) to produce fused quartz and fused silica products with exceptional thermal stability, high-temperature resistance, and chemical inertness.

    We've streamlined our process to be as efficient as possible:

    1. Submit Your RFQ: Send us your technical drawings, specifications, and requirements via our website contact form or email.

    2. Rapid Response: You can expect an initial response within minutes and detailed communication within half an hour.

    3. Design & Proposal: We will deliver a detailed design proposal and a competitive quote within 24 hours.

    4. Prototyping & Production: Upon approval, we move swiftly from prototyping to full-scale production to meet your deadlines.

    Partnering with Aoxin Quartz offers several key advantages:

    • Proven Expertise: With 10+ years in the industry, we have the technical knowledge to tackle complex challenges.

    • One-Stop Solution: We manage the entire production process, from sourcing high-purity raw materials to fabricating and finishing complex components.

    • Competitive Value: Located in a major quartz production hub, we leverage an efficient supply chain and advanced manufacturing to offer exceptional quality at a competitive price point.

    • Dedicated Partnership: Over 90% of our clients become long-term partners. We are committed to your success through responsive service, reliable quality, and innovative solutions.
